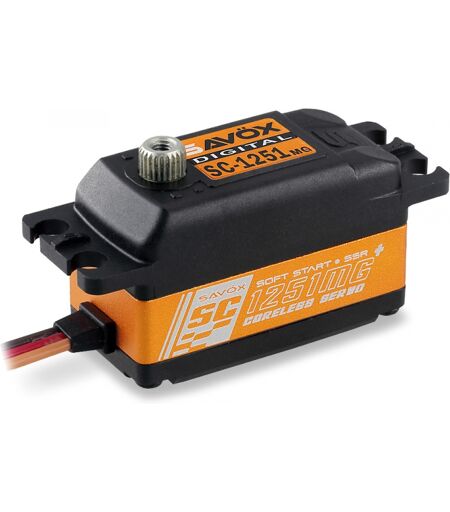

Savöx Sc-1251mg - Metal-Geared Digital Low-Profile Servo 9kg 0,09s - Plus/v2

savöx sc-1251mg - metal-geared digital low-profile servo - plus/v2 the sc-1251mg is now updated with new software and is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution. features: new! softstart function new! sanwa ssr compatible metal gear train ensures durability under harsh situations ideal for 1/10 on road vehicles and some boat applications aluminum case provides cooler operating temperatures specifications: torque @ 4.8v: 7kg/cm torque @ 6v: 9kg/cm speed @ 4.8v: 0.10 sec/60 deg speed @ 6v: 0.09 sec/60 deg dimensions l x w x h: 40.3 x 20.2 x 25.4mm weight: 44.5g technical details: operating temperature: -10° to 50°c running current (no load): 150ma @4.8v, 180ma @6.0v stall current (at locked): 2000ma @4.8v, 3000ma @6.0v idle current: 5ma @4.8v, 5ma @6.0v wire length: 300 +/- 5mm output gear spline: 25 tooth bearings: 2bb operating travel: 90° (1000 → 2000 µ second) neutral position: 1500 µ second pulse width range: 950 → 2050 µ second maximum travel: aprox. 160° (700 → 2300 µ second) refresh rate: 240 hz motor type: coreless ...
