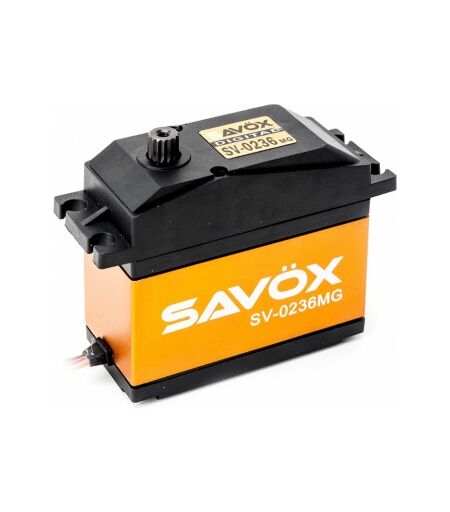

Savöx Sv-0236mg Servo 40kg 0,17s Hv Alu Metal Gear Giant

savöx sv-0236mg - high voltage 1/5 scale servothe sv-0236mg is a large scale, and digital servo. it is metal-geared with an amazing amount of torque while capable of operating on high voltage. features: ideal for 1/5 scale off road and large scale aircraft applications strong metal gear train for added durability extremely high torque output capable of operating on high voltage specifications: torque @6v: 30.0kg torque @7.4v: 40.0kg speed @6v: 0.21 sec/60 deg speed @7.4v: 0.17 sec/60 deg dimensions l x w x h: 65.8 x 30.0 x 57.4mm weight: 200g tech details: operating temperature: 14° - 122°f (-10° - 50°c) running current (no load): 150ma @6.0v, 180ma @7.4v stall current (at locked): 4600ma @6.0v, 5700ma @7.4v idle current: 5ma @4.8v, 5ma @6.0v wire length: 200 ± 5mm output gear spline: 15 tooth bearings: 2bb operating travel: 100° (1000 → 2000 µ second) neutral position: 1500 µ second pulse width range: 800 → 2200 µ second maximum travel: appx 130° (900 → 2100 µ second) refresh rate: 240 hz motor type: brushed ...
